Copeland Universal Replacement Controller
The instant solution for any application!
Refrigeration and food service world requires the control of many different conditions to guarantee that products are processed and stored correctly. We offer efficiency solutions for the management of refrigerated cabinets, warming cabinets, cold rooms and more.
Replacement controller for refrigeration and heating applications
- UNIVERSAL-XR CONTROLLER
- REPLACES

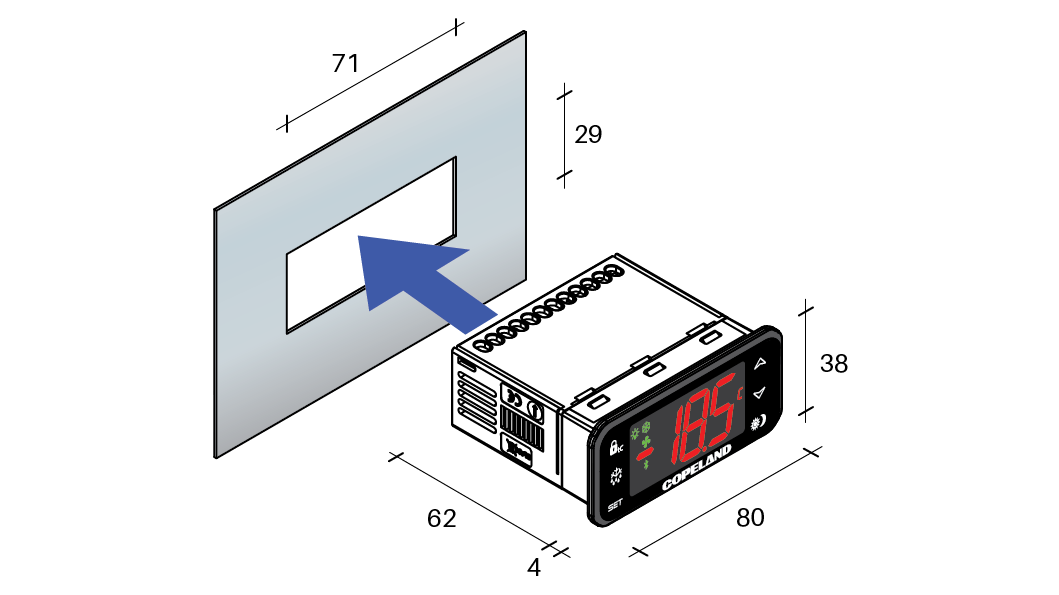

The UNIVERSAL-XR replaces the majority of refrigeration/heating industry standard 32x74mm format controllers in their most typical applications.
This controller has been developed to allow for the refrigeration technician to replace any refrigeration control easily with just three SKUs stocked on their service truck.
- Convenient, versatile, easy to install
- Fast configuration in 3 simple steps
- Simplified maintenance and cost reduction
- Two 120Vac and 230Vac supply voltage versions
- Automatic probe detection
- 7 pre-configured applications
- Kit with two probes included to cover all the applications

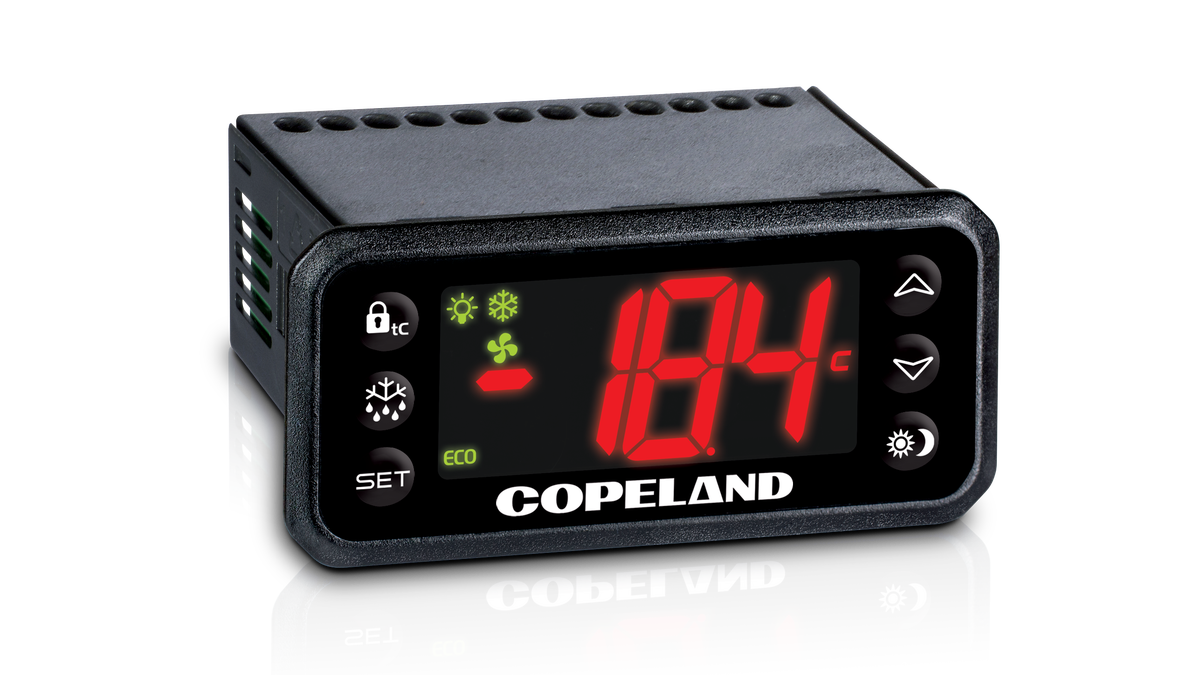

The XR60CH Universal controller can easily replace the following models:
- XR01CX
- XR02CX
- XR03CX
- XR04CX
- XR10CX/CH
- XR20CX/CH
- XR30CX/CH
- XR40CX/CH
Replacement controller for refrigeration and heating applications with Bluetooth® connectivity
- UNIVERSAL-BLE CONTROLLER
- CONNECTIVITY
- MAPS
- REPLACES
The UNIVERSAL-BLE controller replaces the majority of refrigeration/heating industry standard 32x74mm format controllers in their most typical applications. It guarantees high flexibility and connectivity through Bluetooth® communication system and a dedicated APP that allows to control applications in real time and update the controllers remotely.
- Convenient, versatile, easy to install
- Fast configuration
- Simplified maintenance and cost reduction
- 110Vac and 230Vac supply voltage versions
- Double map configurations ready with one button pressing selection
- Application maps available on the website for download to the controller via Copeland CONNECTED App
- Kit with two probes included to cover all the applications
- Embedded data logging for easy troubleshooting
Copeland CONNECTED App
Through Bluetooth® communication and the Copeland CONNECTED App interaction with the unit is even more immediate.
- Scan the QR code to install the Copeland CONNECTED Application
- Upload the map in your controller and finalize the setpoints
Select and download your application map:
|
MAP DESCRIPTION |
XR60CHC |
XR77CHC |
|---|---|---|
| ON/OFF thermostat | 82020001 | 82020001 |
| ON/OFF thermostat + defrost off cycle | 82020002 | 82020002 |
| Forced defrost controller, time initiated & time terminated | 82020003 | 82020003 |
| Forced defrost controller, time initiated & temperature terminated | 82020004 | 82020004 |
| Forced defrost controller, time initiated & temperature terminated with evaporator fan delay after defrost | 82020005 | 82020005 |
| Heating applications | 82020006 | 82020006 |
| Double evaporator applications | - | 82020007 |
The XR60CHC and XR77CHC Universal controllers can easily replace the following models:
- XR35CX/CH
- XR70CX/CH
- XR71CX/CH
- XR72CX/CH
- XR75CX/CH
- XR77CX/CH
Applications
The UNIVERSAL-XR and UNIVERSAL-BLE controllers represent the instant solution for any application, both in refrigeration and heating industry.
