Dixell Solutions

Providing energy-efficient solutions for electronic regulation and control of refrigeration, air-conditioning and heating.
Innovation and efficiency for a better environment

Innovation and efficiency for a better environment

Dixell technology is leading the way in electronic regulation and control in the fields of refrigeration, air conditioning and heating, and retail. Dedication to technological innovation and constant focus on efficiency have driven the development of solutions designed to maximize energy savings. Dixell parametric controllers, fan speed controllers and inverters, compressor controls, EEV drivers, sensors and monitoring systems are trusted around the world. These industrial and commercial products play an important role in ensuring human comfort and protecting food throughout the cold chain.

Products


XWEB PRO

XWEB PRO

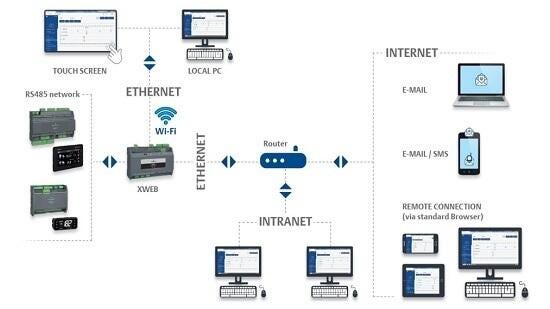

The XWEB PRO is the innovative system family for the optimal management of the Retail environments and HVAC/R applications. The powerful hardware enables best performances due to high elaboration speed and great visualization experience through the Web user interface that has been developed to allow easy and fast access to the most important information whether local, remote, or mobile. Thanks to the Wi-Fi interface the system enables fast, easy and secure accessibility from your mobile device without cabled network infrastructures.


Features:
  • Wi-Fi connection and responsive web pages
  • Simplified and empowered fieldbus
  • Energy saving
  • Compressor safety
  • Enhanced remote analysis
  • Centralized user management
Read More...
XWEB PRO
XWEB PRO

Specifications

XWEB500D PRO

XWEB1000D PRO

XWEB5000 PRO

Applications

medium

large

large with supervision

Format

10 DIN Rail

10 DIN Rail

370x238,5x66h

Power supply

110÷230Vac

24Vac/dc from TF20D

110÷230Vac

N° of instruments

36 - 50 - 75

100 - 150

494

USB host sockets

1

1

6

Relay outputs

3

3

3

Digital inputs

1

2

2

Ethernet sockets

1

2

2

RS485 sockets

2

4

2

RS232 socket

1

1

SD card socket

1

XR Series Refrigeration Controllers

XR Series Refrigeration Controllers

Innovative solutions designed for commercial refrigeration, food service, food retail, bottle cooler applications guaranteeing high usability & quality food storage. Finds use in both low & normal temperature cycles.


Features:
  • Food quality
  • High standards of protection &hygiene
  • Continuity for customers
  • Integrated functions for energy saving
  • Environment friendly
Read More...
XR Series Refrigeration Controllers
XR Series Refrigeration Controllers

Specifications

Relays

1 to 4

Sensors

1 to 4

Digital Inputs

1 to 2

E2 and Site Supervisor Communication

for XR35CX and XR75CX

Power

12, 24Vac/dc, 24, 110, 230Vac

Display: No. of digits

± 3 d.p., ± 2 d.p.

Hot Key/Prog Tool Kit output

Present

Dimensions

32x74 mm, 4 DIN Rail or 50 mm depth

Serial Output

TTL / RS485/ none

PRIME CH

PRIME CH

Prime CH series represents the innovative & aesthetical solution controllers designed for commercial refrigeration, food service and catering applications that guarantee high usability and quality food storage. When the aesthetic appeal becomes fundamental, these controllers are particularly appreciated for their sleek design and elegant style. They are designed for: Ice cream freezers - Pastry refrigerators - Cold rooms - Warming cabinets - Refrigerated cabinets - Wine cellars - Showcases - Refrigerated counters.


Features:
  • Larger display for improved visibility with red LED and icons
  • User friendly interface
  • Direct access to the main functions
  • Easy and intuitive installation
  • Specific functions for pastry cases (dual humidity)
  • Regulation based on the average of two temperatures
  • Energy saving cycles through digital input
  • Temperature Max and Min functions
  • Hot Key for quick and easy programming
  • Serial connection to monitoring systems
  • Connection for remote display (alternative to TTL output)
Read More...
PRIME CH
PRIME CH

Specifications

Housingself-extinguishing ABS
Casefrontal 38x80mm; depth 62mm
Mountingpanel mounting in a 29x71mm cut-out
Front protectionIP65
Connectionsscrew terminal block < 2,5 mm2 wiring
Power supply12, 24Vac/dc110, 230Vac
Power absorption3VA max
Display3 digits, red LED, 14,2mm high
Data storingon the non-volatile memory (EEPROM)
Operating temperature0÷60 °C
Storage temperature-30÷85°C
Relative humidity20÷85% (no condensing)
Measuring and regulation rangeNTC probe: -40÷110°CPTC probe: -50÷150°C
Resolution0.1°C or 1°C
Accuracy (at ambient temperature)±0.7°C ±1 digit

XC Controller

XC Controller

The XC series controller is specially designed for controlling a multi-head parallel compressor and a condensing fan in a refrigerating system.


Features:
  • Digital, Scroll, semi-hermetic, multi stages with different power and screw compressor management
  • Hourly run time signals for maintenance
  • Sub-cooling management
  • Proportional band or neutral zone control
  • Serial connection to monitoring systems
Read More...
XC Controller
XC Controller

Specifications

Voltage

12VAC/DC | 24VAC/DC | 110VAC | 230VAC

Probe inputs

2~6(NTC,4~20mA,0~5V,PTC)

Digital inputs

2~23

Relay outputs

1~15

Analog outputs

1~4(4~20mA,0~10V)

Serial output

TTL, RS485

Energy Meter

Energy Meter

Designed to monitor voltage, current, power, energy, and other electrical parameters on single and three phase electrical systems with revenue-grade accuracy.


Features:
  • Modbus power meter with unique phase failure alarm feature allow this device to suit a wide variety of applications
  • Compatible with a wide range of current transformers for ease of retrofit and electrical safety
  • User-enabled password protection guards against tampering
  • Native integration with E2 Facility controller
  • Can be installed on a standard DIN rail or surface mounted as needed
Read More...
Energy Meter
Energy Meter

Specifications

Inputs

Control power, CT and 3-phase voltage

Outputs

Multiple including solid state relay contacts Modbus and pulse

Communication Protocol

Modbus

Compatibility

Wide variety of current transformers

Password Protection

User enabled
